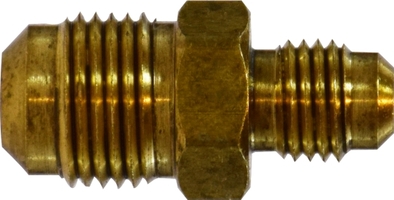

MIDLAND INDUSTRIES 10121 Reducing Union, 1/2 in SAE 45 deg Male Flare x 3/8 in SAE 45 deg Male Flare, Brass
View Catalog Page10121
1/2 X 3/8 REDUCING M FLARE UNION
Please call for price and availability.
| Specification | Value |
|---|---|
| Additional Information | 0.032 in Tube Wall, 0.100 lb Weight |
| Connection Size 1 | 1/2 in |
| Connection Size 2 | 3/8 in |
| Connection Type | Male SAE Flared|Male SAE Flared |
| Connection Type 1 | SAE 45 deg Male Flared |
| Connection Type 2 | SAE 45 deg Male Flared |
| Dimensions | 1.69 in L |
| Fitting Type | Union |
| For Use With | Copper, Brass, Aluminum, Steel Hydraulic Tubing |
| Hex Size | 3/4 in |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 750 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 3/4-16 x 5/8-18 |
Warning:
This product can expose you to chemicals, including lead, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
| Industry Crossover Numbers |
|---|
| 04056-0806 |
| 24286 |
| 242RX8X6 |
| 242X8X6 |
| 42-R-86 |
| 42F-8-6 |
| 42R-86 |
| 42R86 |
| 50635K574 |
| F42R-8-6 |
| S42-8-6 |
| UR2-86 |
| Product Code | Description | List | Availability |
|---|---|---|---|
| 04056-0806 | 506 1/2 X 3/8 RED UNION | $4.85 | Login to view |
| 242RX8X6 | 1/2 X 3/8 REDUCING FLARE UNION | $12.69 | Login to view |
| 42R-86 | 1/2 X 3/8 FLARE REDUCING UNION | $0.00 | Login to view |
