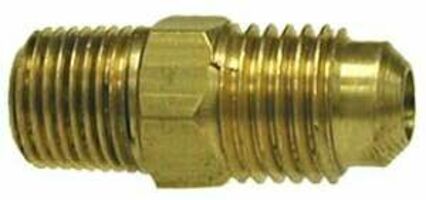

MIDLAND INDUSTRIES 10132 Ball Check Connector, 5/16 in Male SAE 45 deg Flared x 1/8 in Male SAE 45 deg Flared, Brass
10132
5/16 X 1/8 MALE BALL CHECK CONN.
Please call for price and availability.
| Specification | Value |
|---|---|
| Connection Size 1 | 5/16 in |
| Connection Size 2 | 1/8 in |
| Connection Type | Male SAE Flared|Male SAE Flared |
| Connection Type 1 | Male SAE 45 deg Flared |
| Connection Type 2 | Male SAE 45 deg Flared |
| Dimensions | 1.14 in L |
| Fitting Type | Connector |
| For Use With | Copper, Brass, Aluminum and Steel Hydraulic Tubing |
| Hex Size | 1/2 in |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 1200 to 2800 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 1/2-20 x 5/16-24 |
