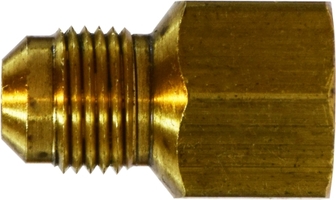

MIDLAND INDUSTRIES 10232 Adapter, 5/16 in Male Flared x 1/8 in FNPTF, Brass
View Catalog Page10232
5/16 X 1/8 MALE FLARE X FIP ADAPTER
Please call for price and availability.
| Specification | Value |
|---|---|
| Additional Information | 0.032 in Tube Wall, 0.050 lb Weight |
| Connection Size 1 | 5/16 in |
| Connection Size 2 | 1/8 in |
| Connection Type | Male Flared|FNPT |
| Connection Type 1 | Male Flared |
| Connection Type 2 | FNPTF |
| Dimensions | 1.06 in L |
| Fitting Type | Adapter |
| For Use With | Copper, Brass, Aluminum, Steel Hydraulic Tubing |
| Hex Size | 0.56 in |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 1200 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 1/2-20 x 1/8-27 |
Warning:
This product can expose you to chemicals, including lead, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
| Industry Crossover Numbers |
|---|
| 04046-0502 |
| 146520 |
| 246-5 |
| 246X5 |
| 46-52 |
| 46-5A |
| 465A |
| 46F-5-2 |
| 46x5 |
| 50635K436 |
| F46-5-2 |
| S46-5-2 |
| U3-5A |
| Product Code | Description | List | Availability |
|---|---|---|---|
| 246X5 | 5/16 X 1/8 SAE FE COUP | $25.29 | Login to view |
| 46-52 | 5/16 FL X 1/8 FPT FE ADAPTER | $9.02 | Login to view |
