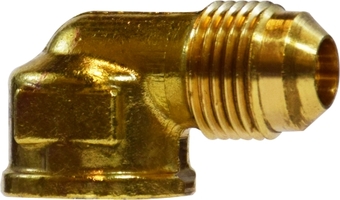

MIDLAND INDUSTRIES 10315 90 deg Elbow, 1/4 in Male Flared x 3/8 in FNPTF, Brass
View Catalog Page10315
1/4 X 3/8 M FLARE X FIP ELBOW
Please call for price and availability.
Specification | Value |
---|---|
Additional Information | 0.81 in Body Size, 1.03 x 0.57 in Center to End, 0.03 in Tube Wall, 0.090 lb Weight |
Connection Size 1 | 1/4 in |
Connection Size 2 | 3/8 in |
Connection Type | Male Flared|FNPT |
Connection Type 1 | Male Flared |
Connection Type 2 | FNPTF |
Fitting Type | 90 deg Elbow |
For Use With | Copper, Brass, Aluminum, Steel Hydraulic Tubing |
Material | Brass |
Material Construction | Forged Brass |
Pressure Rating | 1400 psi |
Temperature Rating | -65 to 250 deg F |
Thread Size | 7/16-20 x 3/8-18 |
Please Log in or Open an Account to see availablility.
Industry Crossover Numbers |
---|
04050-0406 |
50-46 |
50-4C |
504C |
50F-46 |
50x4x6 |
E3-4C |
EF3-4C |
S150-4-6 |
Product Code | Description | List | Availability |
---|---|---|---|
50F-46 | 1/4FLX3/8FPT 90 FE ELBOW FGD | $0.00 | Login to view |
