Specification	Value
Additional Information	1-1/4 in Body Size, 1.28 x 0.72 in Center to End, 0.032 in Tube Wall, 0.120 lb Weight
Connection Size 1	3/8 in
Connection Size 2	3/4 in
Connection Type	Male Flared|FNPT
Connection Type 1	Male Flared
Connection Type 2	FNPTF

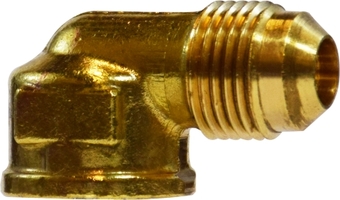

Fitting Type	90 deg Elbow
For Use With	Copper, Brass, Aluminum, Steel Hydraulic Tubing
Material	Brass
Material Construction	Forged Brass
Pressure Rating	1000 psi
Temperature Rating	-65 to 250 deg F
Thread Size	5/8-18 x 3/4-14
