Specification	Value
Additional Information	1-1/4 in Body Size, 1.5 x 0.76 in Center to End, 0.035 in Tube Wall, 0.280 lb Weight
Connection Size 1	5/8 in
Connection Size 2	3/4 in
Connection Type	Male Flared|FNPT
Connection Type 1	Male Flared
Connection Type 2	FNPTF

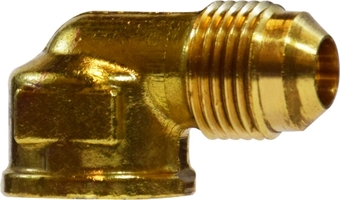

Fitting Type	90 deg Elbow
For Use With	Copper, Brass, Aluminum, Steel Hydraulic Tubing
Material	Brass
Material Construction	Forged Brass
Pressure Rating	650 psi
Temperature Rating	-65 to 250 deg F
Thread Size	7/8-14 x 3/4-14
