Product Information

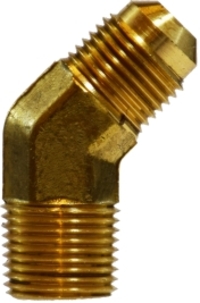

MIDLAND INDUSTRIES 10451 45 deg Elbow, 5/16 in Male Flared x 1/4 in Male NPTF, Brass

View Catalog Page


5/16 X 1/4 M FLARE X MIP 45 ELBOW

Specification Value
Additional Information 0.032 in Tube Wall Thickness, 0.81 x 0.86 in Center to End, 0.53 in Body Size, 0.070 lb Weight
Connection Size 1 5/16 in
Connection Size 2 1/4 in
Connection Type 1 Male Flared
Connection Type 2 Male NPTF
Connection Type Male Flared|MNPT
Fitting Type 45 deg Elbow
For Use With Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared
Material Brass
Material Construction Forged Brass
Pressure Rating 1200 psi
Temperature Rating -65 to 250 deg F
Thread Size 1/2-20 x 1/4-18

Warning: This product can expose you to chemicals, including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information visit

Please Log in or Open an Account to see availablility.

Industry Crossover Numbers
Product Code Description List Availability
4945F-54 5/16FLX1/4MPT 45 ELBOW FORGED $0.00 Login to view
