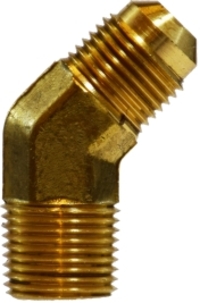

MIDLAND INDUSTRIES 10454 45 deg Elbow, 3/8 in Male Flared x 1/2 in Male NPTF, Brass
View Catalog Page10454
3/8 X 1/2 M FLARE X MIP 45 ELBOW
Specification | Value |
---|---|
Additional Information | 0.032 in Tube Wall Thickness, 0.99 x 1.17 in Center to End, 3/4 in Body Size, 0.190 lb Weight |
Connection Size 1 | 3/8 in |
Connection Size 2 | 1/2 in |
Connection Type | Male Flared|MNPT |
Connection Type 1 | Male Flared |
Connection Type 2 | Male NPTF |
Fitting Type | 45 deg Elbow |
For Use With | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
Material | Brass |
Material Construction | Forged Brass |
Pressure Rating | 1000 psi |
Temperature Rating | -65 to 250 deg F |
Thread Size | 5/8-18 x 1/2-14 |
Warning:
This product can expose you to chemicals, including lead, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
Industry Crossover Numbers |
---|
04095-0608 |
254x6x8 |
47-68 |
4945F-68 |
54-6D |
546D |
54x6x8 |
E1-45-6D |
Product Code | Description | List | Availability |
---|---|---|---|
4945F-68 | 3/8FLX1/2MPT 45 ELBOW FORGED | $0.00 | Login to view |
