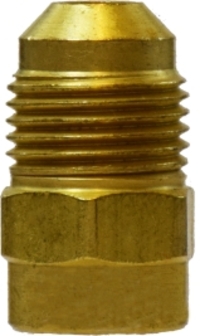

MIDLAND INDUSTRIES 10462 Reducing Adapter, 1/4 in SAE 45 deg Male Flared x 3/8 in SAE 45 deg Female Flared, Brass
View Catalog Page10462
1/4 X 3/8 M FLARE X FE FLARE ADAPTER
Please call for price and availability.
| Specification | Value |
|---|---|
| Additional Information | 0.032 in Tube Wall Thickness, 0.1 lb Weight |
| Connection Size 1 | 1/4 in |
| Connection Size 2 | 3/8 in |
| Connection Type | Male SAE Flared|Female SAE Flared |
| Connection Type 1 | SAE 45 deg Male Flared |
| Connection Type 2 | SAE 45 deg Female Flared |
| Dimensions | 1.22 in L |
| Fitting Type | Adapter |
| For Use With | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| Hex Size | 0.81 in |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 1000 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 7/16-24 x 5/8-18 |
Warning:
This product can expose you to chemicals, including lead, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
| Industry Crossover Numbers |
|---|
| 04061-0604 |
| 2276X4 |
| 35-64 |
| 3564 |
| 446-46 |
| 446-64 |
| 601-64 |
| UR3-46 |
| UR3-64 |
| Product Code | Description | List | Availability |
|---|---|---|---|
| 601-64 | 3/8FFL X 1/4MFL FLARE ADAPTER | $5.40 | Login to view |
