Specification	Value
Additional Information	0.035 in Tube Wall Thickness, 0.16 lb Weight
Connection Size 1	3/8 in
Connection Size 2	5/8 in
Connection Type	Male SAE Flared|Female SAE Flared
Connection Type 1	SAE 45 deg Male Flared
Connection Type 2	SAE 45 deg Female Flared
Dimensions	1.63 in L

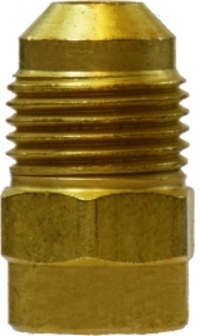

Fitting Type	Adapter
For Use With	Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared
Hex Size	1.12 in
Material	Brass
Material Construction	Brass
Pressure Rating	650 psi
Temperature Rating	-65 to 250 deg F
Thread Size	5/8-18 x 7/8-18
