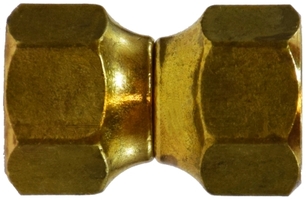

MIDLAND INDUSTRIES 10485 Swivel Union, 5/8 in SAE 45 deg Female Flared x 5/8 in SAE 45 deg Female Flared, Brass
View Catalog Page10485
5/8 FEMALE FLARE SWIVEL UNION
Please call for price and availability.
| Specification | Value |
|---|---|
| Additional Information | 0.035 in Tube Wall Thickness, 0.24 lb Weight |
| Connection Size 1 | 5/8 in |
| Connection Size 2 | 5/8 in |
| Connection Type | Female SAE Flared|Female SAE Flared |
| Connection Type 1 | SAE 45 deg Female Flared |
| Connection Type 2 | SAE 45 deg Female Flared |
| Dimensions | 1.88 in L |
| Fitting Type | Union |
| For Use With | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| Hex Size | 1.06 in |
| Material | Brass |
| Material Construction | Forged Brass |
| Pressure Rating | 650 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 7/8-14 |
Warning:
This product can expose you to chemicals, including lead, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
| Industry Crossover Numbers |
|---|
| 04070-10 |
| 1350-10 |
| 135010 |
| 1350X10 |
| 14FSY-10 |
| 34-10 |
| 3410 |
| 41FS-10 |
| 700-10 |
| F42SW-10 |
| S114FSV-10 |
| US4-10 |
| Product Code | Description | List | Availability |
|---|---|---|---|
| 700-10 | 5/8 FGD NUT FE/FLARE SWIVEL | $21.58 | Login to view |
