Specification	Value
Additional Information	0.035 in Tube Wall Thickness, 0.22 lb Weight
Connection Size 1	5/8 in
Connection Size 2	1/2 in
Connection Type	Female SAE Flared|Female SAE Flared
Connection Type 1	SAE 45 deg Female Flared
Connection Type 2	SAE 45 deg Female Flared
Dimensions	1.8 in L

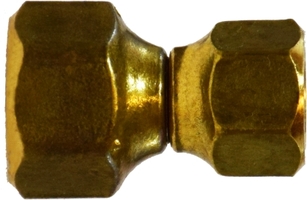

Fitting Type	Union
For Use With	Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared
Hex Size	1.03 x 0.94 in
Material	Brass
Material Construction	Brass
Pressure Rating	650 psi
Temperature Rating	-65 to 250 deg F
Thread Size	7/8-14 x 3/4-16
