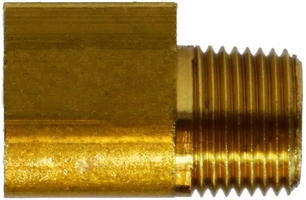

MIDLAND INDUSTRIES 12059 90 deg Elbow, 1/4 in Female Inverted Flared x 1/8 in MNPTF, Brass
View Catalog Page12059
1/4 X 1/8 FE INVERTED FLARE X MIP ELBOW
Please call for price and availability.
| Specification | Value |
|---|---|
| Additional Information | 0.33 x 0.65 in Center to End, 0.03 in Tube Wall, 0.040 lb Weight |
| Connection Size 1 | 1/4 in |
| Connection Size 2 | 1/8 in |
| Connection Type | Female Inverted Flared|MNPT |
| Connection Type 1 | Female Inverted Flared |
| Connection Type 2 | MNPTF |
| Fitting Type | 90 deg Elbow |
| For Use With | Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 1400 psi |
| Temperature Rating | -65 to 250 deg F |
| Thread Size | 7/16-24 x 1/8-27 |
Warning:
This product can expose you to chemicals, including lead, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
| Industry Crossover Numbers |
|---|
| 006942 |
| 04349-0402 |
| 122420 |
| 149-4A |
| 1494A |
| 2400-4 |
| 2400X4 |
| 2400x4 / 2402x4 |
| 249IF-4-2 |
| 400-42 |
| 402x4 |
| 49I-4A |
| 49IF-42 |
| 6942 |
| 89108 |
| IF49-4-2 |
| S249IF-4-2 |
| Product Code | Description | List | Availability |
|---|---|---|---|
| 49IF-42 | 1/4 FIF X 1/8 MPT 90 INVERTED | $0.00 | Login to view |
