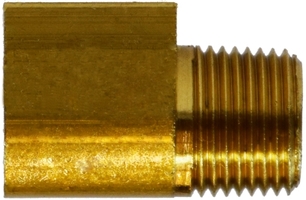

MIDLAND INDUSTRIES 12062 90 deg Elbow, 5/16 in Female Inverted Flared x 1/4 in MNPTF, Brass
View Catalog Page12062
5/16 X 1/4 FE INVERTED FLARE X MIP ELBOW
Specification | Value |
---|---|
Additional Information | 0.45 x 0.85 in Center to End, 0.032 in Tube Wall, 0.080 lb Weight |
Connection Size 1 | 5/16 in |
Connection Size 2 | 1/4 in |
Connection Type 1 | Female Inverted Flared |
Connection Type 2 | MNPTF |
Connection Type | Female Inverted Flared|MNPT |
Fitting Type | 90 deg Elbow |
For Use With | Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
Material | Brass |
Material Construction | Brass |
Pressure Rating | 1200 psi |
Temperature Rating | -65 to 250 deg F |
Thread Size | 1/2-20 x 1/4-18 |
Please Log in or Open an Account to see availablility.
Industry Crossover Numbers |
---|
04349-0504 |
122540 |
149-5B |
1495B |
2434-5 |
2434X5 |
249IF-5-4 |
400-54 |
402x5x4 |
49I-5B |
49IF-54 |
6954 |
IF49-5-4 |
S249IF-5-2 |
Product Code | Description | List | Availability |
---|---|---|---|
49IF-54 | 5/16X1/4MPT INVFLR MALE ELBOW | $11.58 | Login to view |
