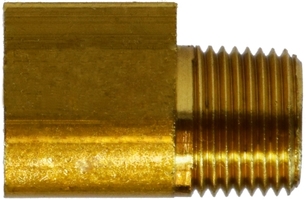

MIDLAND INDUSTRIES 12064 90 deg Elbow, 3/8 in Female Inverted Flared x 1/4 in MNPTF, Brass
View Catalog Page12064
3/8 X 1/4 FE INVERTED FLARE X MIP ELBOW
Specification | Value |
---|---|
Additional Information | 0.53 x 0.92 in Center to End, 0.032 in Tube Wall, 0.140 lb Weight |
Connection Size 1 | 3/8 in |
Connection Size 2 | 1/4 in |
Connection Type 1 | Female Inverted Flared |
Connection Type 2 | MNPTF |
Connection Type | Female Inverted Flared|MNPT |
Fitting Type | 90 deg Elbow |
For Use With | Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
Material | Brass |
Material Construction | Brass |
Pressure Rating | 1000 psi |
Temperature Rating | -65 to 250 deg F |
Thread Size | 5/8-18 x 1/4-18 |
Please Log in or Open an Account to see availablility.
Industry Crossover Numbers |
---|
04349-0604 |
122640 |
149-6B |
1496B |
2400-6 |
2400/2402X6 |
2400X6 |
2400x6 / 2402x6 |
249IF-6-4 |
400-64 |
402x6 |
49I-6B |
49IF-64 |
6964 |
IF49-6-4 |
S249IF-6-4 |
Product Code | Description | List | Availability |
---|---|---|---|
49IF-64 | 3/8 FIF X 1/4 MPT 90 INVERTED | $10.49 | Login to view |
