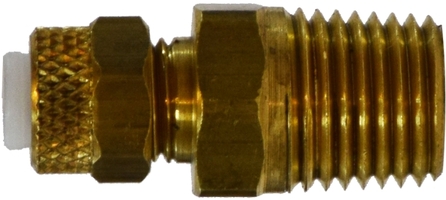

MIDLAND INDUSTRIES Poly-Flo® 20277 Adapter, 3/8 in Tube OD x 1/4 in MNPTF, Brass
View Catalog Page20277
3/8 X 1/4 POLY-FLO X MIP ADAPT
Flareless
Please call for price and availability.
| Specification | Value |
|---|---|
| Additional Information | 0.060 lb Weight |
| Connection Size 1 | 3/8 in |
| Connection Size 2 | 1/4 in |
| Connection Type | Tube|MNPT |
| Connection Type 1 | Tube OD |
| Connection Type 2 | MNPTF |
| Dimensions | 1.03 in L |
| Fitting Type | Adapter |
| For Use With | Aluminum and Copper Tubing |
| Hex Size | 0.56 in |
| Material | Brass |
| Material Construction | Brass |
| Pressure Rating | 150 psi |
| Temperature Rating | -40 to 150 deg F |
| Thread Size | 3/8-24 x 1/2-24 |
Warning:
This product can expose you to chemicals, including lead, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
| Industry Crossover Numbers |
|---|
| 02668-0604 |
| 1268x6 |
| 268PF-6B |
| 468-6B |
| 4686B |
| 5053K53 |
| 68PF-6-4 |
| 68PF6X4 |
| 9568-64 |
| AP68-P-6X4 |
| MP68-64 |
| Product Code | Description | List | Availability |
|---|---|---|---|
| MP68-64 | 3/8 OD X 1/4 MPT CONNECTOR | $0.00 | Login to view |
