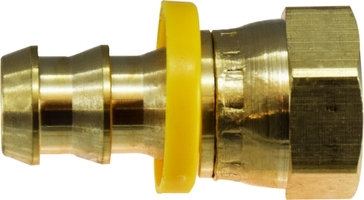

MIDLAND INDUSTRIES 30232 Adapter, 5/16 in Push-On Hose Barbed x 5/16 in Female SAE 45 deg/37 deg JIC Swivel, Brass
View Catalog Page30232
5/16X5/16 PUSH ON HOSE BARB X F 45/37 FLARE SWIVEL
Please call for price and availability.
| Specification | Value |
|---|---|
| Additional Information | 0.040 lb Weight |
| Connection Size 1 | 5/16 in |
| Connection Size 2 | 5/16 in |
| Connection Type | Barbed|Female JIC Swivel |
| Connection Type 1 | Push-On Hose Barbed |
| Connection Type 2 | Female SAE 45 deg/37 deg JIC Swivel |
| Dimensions | 1.56 in L |
| Fitting Type | Adapter |
| Hex Size | 0.62 in |
| Material | Brass |
| Material Construction | Brass |
| Maximum Operating Pressure | 150 psi |
| Thread Size | 1/2-20 |
Warning:
This product can expose you to chemicals, including lead, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
| Industry Crossover Numbers |
|---|
| 07210-0505 |
| 10005B-405 |
| 10005B-605 |
| 29PO5-55 |
| 309-55 |
| JF/SF-05-05 |
| JFSF0505 |
| P41-55 |
| Product Code | Description | List | Availability |
|---|---|---|---|
| 29PO5-55 | 5/16 HID X 5/16 FFL DUAL SEAT | $5.82 | Login to view |
