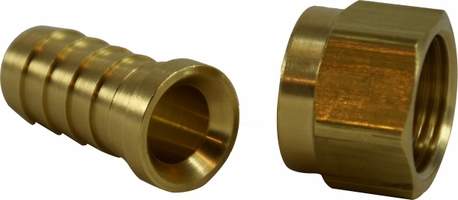

MIDLAND INDUSTRIES 32341 Swivel Adapter, 1/2 in Hose Barbed x 1/2 in Female SAE 45 deg/37 deg JIC Flared, Brass
View Catalog Page32341
1/2 X 1/2 HOSE BARB X FEM 45/37 FLARE SWIVEL
Please call for price and availability.
| Specification | Value |
|---|---|
| Additional Information | 0.100 lb Weight |
| Connection Size 1 | 1/2 in |
| Connection Size 2 | 1/2 in |
| Connection Type | Barbed|Female JIC Swivel |
| Connection Type 1 | Hose Barbed |
| Connection Type 2 | Female SAE 45 deg/37 deg JIC Flared |
| Dimensions | 1.68 in L |
| Fitting Type | Adapter |
| For Use With | Hose Clamp, Similar Type Clamp or A Crimped Ferrules |
| Hex Size | 0.87 in |
| Material | Brass |
| Material Construction | Brass |
| Maximum Operating Pressure | 150 psi |
| Operating Temperature | -40 to 160 deg F |
| Thread Size | 3/4-16 |
Warning:
This product can expose you to chemicals, including lead, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
| Industry Crossover Numbers |
|---|
| JS/SFB-8-8 |
| Product Code | Description | List | Availability |
|---|---|---|---|
| 32341LF | 1/2 X 1/2 HB X FEM 45/37 FL SWVL LF | $7.04 | Login to view |
