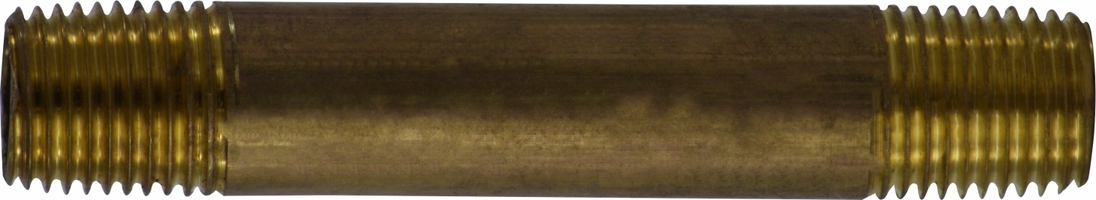

MIDLAND INDUSTRIES 40022 Seamless Pipe Nipple, 1/4 in MPT x 1/4 in MPT, 2 in, Brass
View Catalog Page40022
1/4 X 2 RED BRASS NIPPLE
Please call for price and availability.
| Specification | Value |
|---|---|
| Additional Information | 0.082 in Wall Thickness, 0.060 lb Weight |
| Connection Size 1 | 1/4 in |
| Connection Size 2 | 1/4 in |
| Connection Type | MPT|MPT |
| Connection Type 1 | MPT |
| Connection Type 2 | MPT |
| Diameter | 0.376 in ID x 0.54 in OD |
| Dimension Standards | ANSI B1.20.1, WW-N-351, MS 51846 |
| Fitting Type | Nipple |
| Length | 2 in |
| Material | Brass |
| Material Construction | Lead-Free Red Brass |
| Pressure Class | 125 lb |
| Pressure Rating | 870 psi at 100 deg F |
| Schedule Rating | SCH 40 |
| Temperature Rating | -20 to 400 deg F |
| Thread Size | 1/4-18 |
Please Log in or Open an Account to see availablility.
| Industry Crossover Numbers |
|---|
| 11102X0020RR |
| 1VGJ7 |
| 2004-200 |
| 201120 |
| 350381 |
| 38300-0420 |
| 4220 |
| 4422306 |
| 4568K133 |
| 6.6187E+12 |
| 6618704329800 |
| 700202 |
| 80300-0420 |
| 86NI4002020C |
| 888-04-0200B |
| BP113-4-20 |
| BR142N |
| BRN-0220 |
| NA-0220 |
| NBR012 |
| Product Code | Description | List | Availability |
|---|---|---|---|
| 28145 | 1/4 X 2 YELLOW BR NIPPLE | $3.32 | Login to view |
