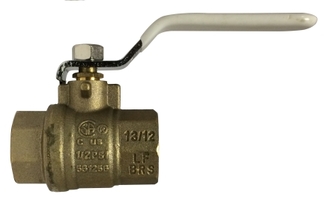

MIDLAND INDUSTRIES 940181LF Ball Valve, 4 in Nominal, FPT x FPT, 400 psi WOG Pressure, -22 to 302 deg F
View Catalog Page940181LF
4 Leadfree FXF Full Port Ball Valve
Please call for price and availability.
Specification | Value |
---|---|
Additional Information | 150 psi WSP Saturated Steam Pressure, 20.990 lb Weight |
Ball Material | 316 Stainless Steel |
Body Material | Lead-Free Forged Brass |
Connection Type | FPT x FPT |
Dimensions | 7.386 in L |
Domestic/Import | Import |
Handle Material | Nickel-Plated Steel |
Inlet to Outlet Length | 7.386 in |
Lead-Free/Contains Lead | Lead-Free |
Nominal Size | 4 in |
Operator Type | Lever Handle |
Packing Material | PTFE |
Port Type | Full |
Pressure Rating | 400 psi WOG |
Seal Material | PTFE |
Seat Material | PTFE |
Stem Material | Brass |
Temperature Rating | -22 to 302 deg F |
Top to Inlet Center | 6.13 in |
Trim Material | Brass-Plated Steel Stem Nut |
Warning:
This product can expose you to chemicals, including nickel, which are known
to the state of California to cause cancer and birth defects or other reproductive
harm. For more information visit www.P65Warnings.ca.gov.
Please Log in or Open an Account to see availablility.
Industry Crossover Numbers |
---|
Q104LF 4 |
