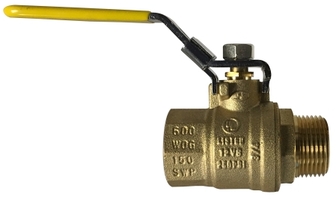

MIDLAND INDUSTRIES 948176L Ball Valve, 1-1/2 in Nominal, MPT x FPT, 600 psi WOG Pressure, -20 to 300 deg F
View Catalog Page948176L
1 1/2 LOCKING HANDLE MALEXFEMALE BALL VALVE
Locking Handle
Please call for price and availability.
Specification | Value |
---|---|
Additional Information | 1-1/2-11-1/2 Thread Size, 2.350 lb Weight |
Ball Material | Brass |
Body Material | Brass |
Connection Type | MPT x FPT |
Dimensions | 3.965 in L |
Domestic/Import | Import |
Handle Material | Steel |
Inlet to Outlet Length | 3.965 in |
Lead-Free/Contains Lead | Contains Lead |
Nominal Size | 1-1/2 in |
Operator Type | Locking Handle |
Packing Material | PTFE |
Pressure Rating | 600 psi WOG |
Seal Material | PTFE |
Seat Material | PTFE |
Stem Material | Brass |
Temperature Rating | -20 to 300 deg F |
Top to Inlet Center | 3.366 in |
Trim Material | Brass Impacted Nut/Steel Stem Nut |
