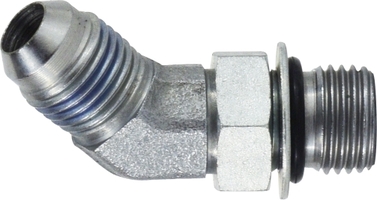

MIDLAND INDUSTRIES 6802NWO12 45 deg Elbow, 3/4 in MJIC x 3/4 in Male ORB, Steel
View Catalog Page6802NWO12
1-1/16-12X1-1/16-12 MJICXMORB 45 ELBOW
Specification | Value |
---|---|
Additional Information | 3600 psi Non-Adjustable, 0.850 lb Weight |
Connection Size 1 | 3/4 in |
Connection Size 2 | 3/4 in |
Connection Type 1 | MJIC |
Connection Type 2 | Male ORB |
Connection Type | Male JIC|Male ORB |
Fitting Type | 45 deg Elbow |
Material | Steel |
Material Construction | Steel |
Maximum Operating Pressure | 2900 psi |
Operating Temperature | 375 deg F |
Thread Size | 1-1/16-12 |
Please Log in or Open an Account to see availablility.
Industry Crossover Numbers |
---|
852-12-12 |
